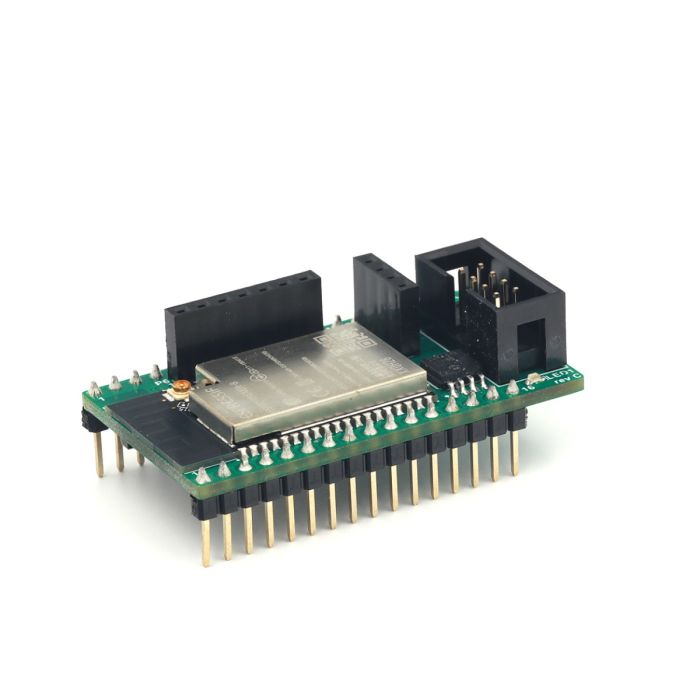

aMG FiO Glide ESP32

Overview

     FiO Glide ESP32 is an Internet of Things (IoT) module based on Espressif ESP32-WROVER-IE module, which uses ESP32-D0WD-V3 chip. It has been specifically designed to work with Waijung 2 Blockset, which is an IoT development platform, to design IoT devices with Model-Based Design technique.

FiO Glide ESP32 Key Features

  1. ESP32 Module: ESP32-WROVER-IE
    1. Flash: 16 MB
    2. PSRAM: 8 MB
    3. Antenna: IPEX
    4. WiFi: 802.11 b/g/n (802.11n up to 150 Mbps)
    5. RF frequency: 2412 ~ 2484 MHz
  2. On-board micro SD card slot
  3. On-board 512 kbits EEPROM
  4. Power supply
    1. 5V
    2. 3.3V

    Please Sign in or Create Account before download file

    ESP32-WROVER-IE Specifications

     Categories

     Items Specification

     Certification

     RF certification

     FCC/CC/CE-RED/SRRC

     Test

     Reliability

     HTOL/HTSL/uHAST/TCT/ESD

     Wi-Fi Protocols

     802.11 b/g/n (802.11n up to 150 Mbps)

     A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support

     Frequency range

     2412 ~ 2484 MHz

     Bluetooth Protocols

     Bluetooth v4.2 BR/EDR and BLE specification

     Radio

     NZIF receiver with –97 dBm sensitivity

     Class-1, class-2 and class-3 transmitter

     AFH

     Audio

     CVSD and SBC

     Hardware

     Module interfaces

     SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO,   capacitive touch sensor, DC, DAC, Two-Wire Automotive Interface (TWAI®,   compatible with ISO11898-1

     On-chip sensor

     Hall sensor

     Integrated crystal

     40 MHz crystal

     Integrated SPI flash

     4 MB

     Integrated PSRAM

     8 MB

     Operating voltage/Power supply

     3.0 V ~ 3.6 V

     Minumum current delivered by power supply

     500 mA

     Recommended operating temperature range

     –40 °C ~ 85 °C

     Package size

     (18.00±0.15) mm × (31.40±0.15) mm × (3.30±0.15) mm

     Moisture sensitivity level (MSL)

     Level 3


    FiO Glide ESP32 Block Diagram



    ENGINEERING DRAWING (Unit: mm)
