FiO Glide ESP32 Starter Kit

Overview

     FiO Glide ESP32 is an Internet of Things (IoT) module based on Espressif ESP32-WROVER-IE module, which uses ESP32-D0WD-V3 chip. It has been specifically designed to work with Waijung 2 Blockset, which is an IoT development platform, to design IoT devices with Model-Based Design technique.

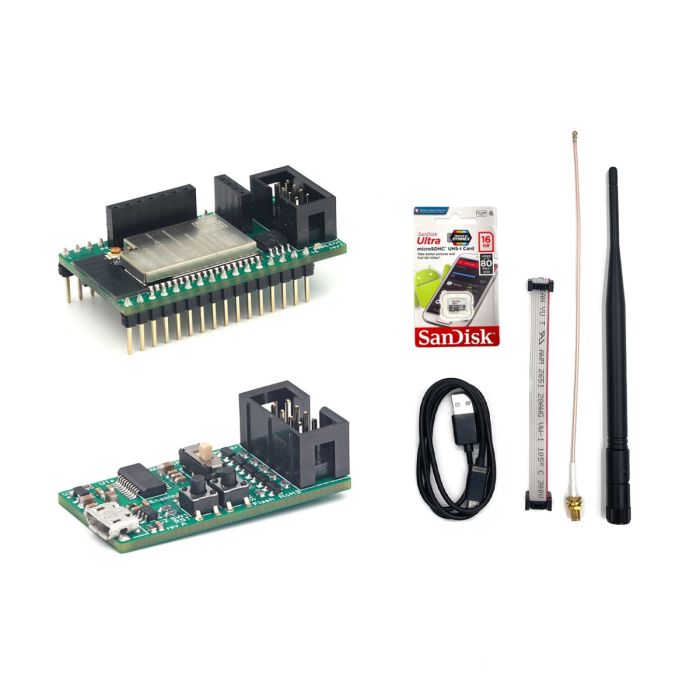

This starter kit included everything you need to get started programing ESP32 with Waijung2 blockset.

  1. 1x aMG FiO Glide ESP32

  2. 1x aMG ESP32 Programmer

  3. 1x SanDisk Ultra® SDHC™ UHS-I Card 16 GB

  4. 1x 2400-2483MHz Rubber Antenna (5 dBi)

  5. 1x SMA to TPEX (MH4) 200mm cable

FiO Glide ESP32 Key Features

    1. ESP32 Module: ESP32-WROVER-IE
      1. Flash: 16 MB
      2. PSRAM: 8 MB
      3. Antenna: IPEX
      4. WiFi: 802.11 b/g/n (802.11n up to 150 Mbps)
      5. RF frequency: 2412 ~ 2484 MHz
    2. On-board micro SD card slot
    3. On-board 512 kbits EEPROM
    4. Power supply
      1. 5V
      2. 3.3V

Please Sign in or Create Account before download file

Customize FiO Glide ESP32 Starter Kit

* Required Fields

Your Customization
FiO Glide ESP32 Starter Kit
FiO Glide ESP32 Starter Kit

In stock

฿925.23

Summary

    ESP32-WROVER-IE Specifications

     Categories

     Items Specification

     Certification

     RF certification

     FCC/CC/CE-RED/SRRC

     Test

     Reliability

     HTOL/HTSL/uHAST/TCT/ESD

     Wi-Fi Protocols

     802.11 b/g/n (802.11n up to 150 Mbps)

     A-MPDU and A-MSDU aggregation and 0.4 µs guard interval support

     Frequency range

     2412 ~ 2484 MHz

     Bluetooth Protocols

     Bluetooth v4.2 BR/EDR and BLE specification

     Radio

     NZIF receiver with –97 dBm sensitivity

     Class-1, class-2 and class-3 transmitter

     AFH

     Audio

     CVSD and SBC

     Hardware

     Module interfaces

     SD card, UART, SPI, SDIO, I2C, LED PWM, Motor PWM, I2S, IR, pulse counter, GPIO,   capacitive touch sensor, DC, DAC, Two-Wire Automotive Interface (TWAI®,   compatible with ISO11898-1

     On-chip sensor

     Hall sensor

     Integrated crystal

     40 MHz crystal

     Integrated SPI flash

     4 MB

     Integrated PSRAM

     8 MB

     Operating voltage/Power supply

     3.0 V ~ 3.6 V

     Minumum current delivered by power supply

     500 mA

     Recommended operating temperature range

     –40 °C ~ 85 °C

     Package size

     (18.00±0.15) mm × (31.40±0.15) mm × (3.30±0.15) mm

     Moisture sensitivity level (MSL)

     Level 3


    FiO Glide ESP32 Block Diagram



    ENGINEERING DRAWING (Unit: mm)
